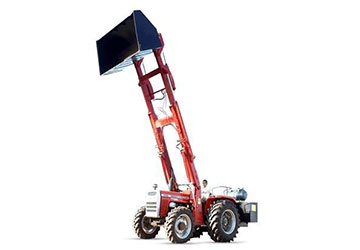

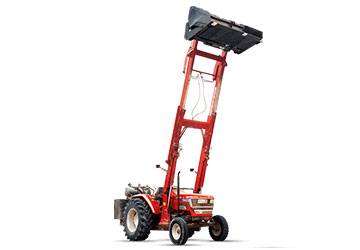

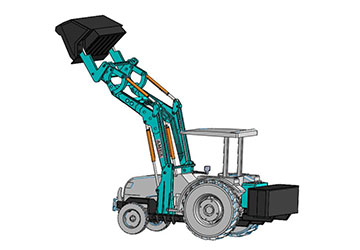

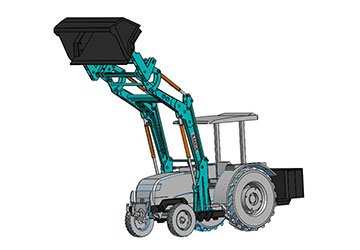

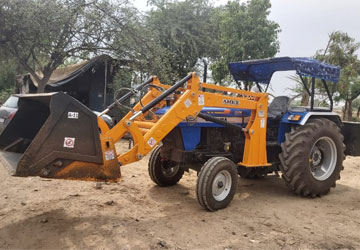

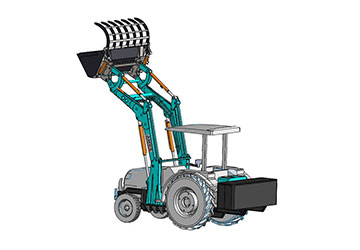

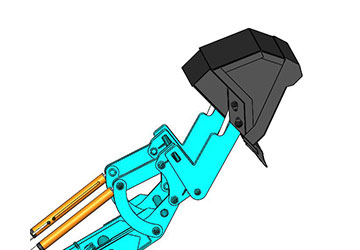

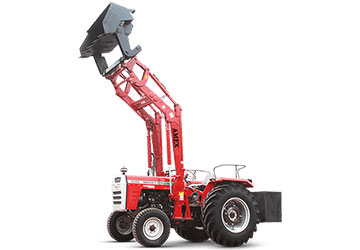

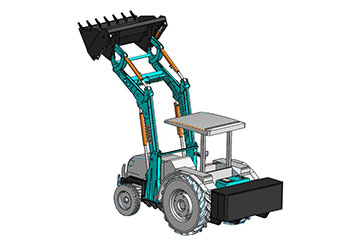

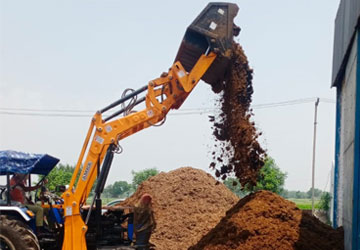

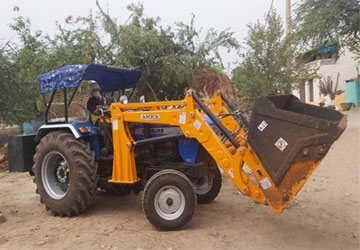

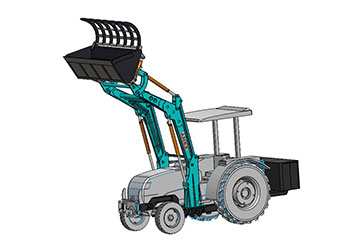

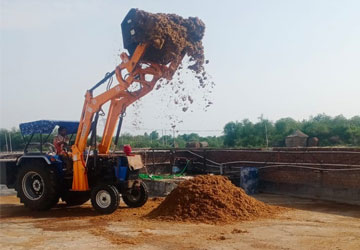

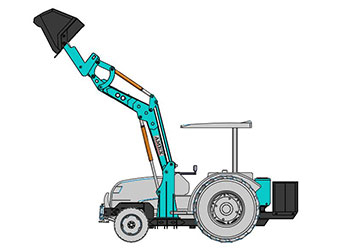

Symbol |
Description |
A-11 Dimention (MM/ft,in") |
A-8 Dimention (MM/ft,in") |
A-6 Dimention (MM/ft,in") |
A |
loader Height (Max Dump) |
4298/14,1" |
3750/12,3" |
3750/12,3" |
B |
Load arm Pin Height |
3750/12,3" |
3350/11,0" |
3350/11,0" |
C |
Dump Height |
3960/13" |
2850/9,3" |
2850/9,3" |
D |
Reach at ground (depend upon tractor) |
1250/4,11" |
1250/4,11" |
1250/4,10" |
E |
Reach at full dump (depend upon tractor) |
792/2,6" |
792/2,6" |
700/2,3" |
F |
Dig Dept |
102/4" |
51/2" |
51/2" |
G |
Roll Back At Ground |
53° |
53° |
53° |
H |
Dump Angle |
45° |
45° |
45° |
I |
Bucket Rated Capacity (Inside length 1950/1750/1450mm) |
0.65 cu.m |
0.56 cu.m |
0.45 cu.m |
J |
Safe Working Load |
1100kg |
800kg |
600kg |
K |
hydraulics |
Independent |
Tractor Pump |
Tractor pump |
