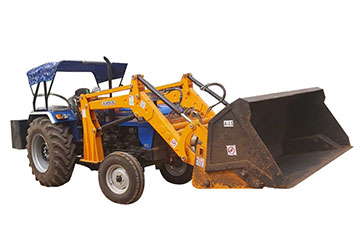

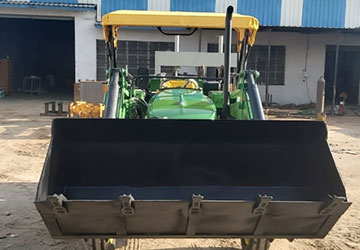

Standard Bucket
img-about

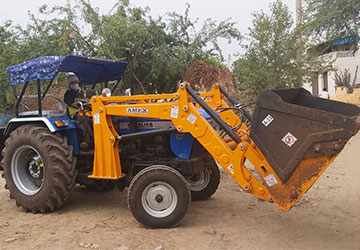

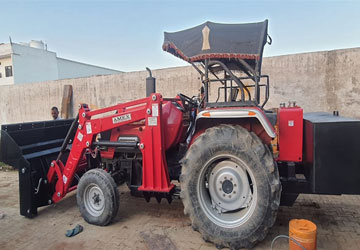

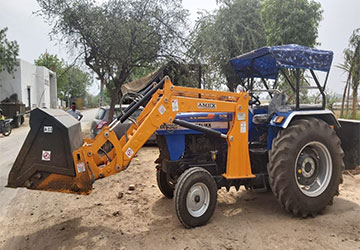

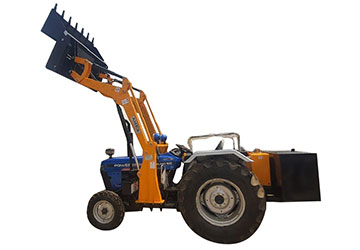

Low cost loader on low hp tractors

Possible to mount on tractor range from 30-50 hp tractors at very affordable and economical price

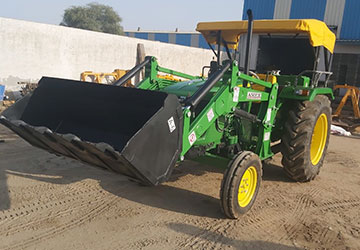

Bucket Adaptive System

6 types of bucket availabolity can be interchanged within minutes by using Bucket adaptable system

img-about

img-about

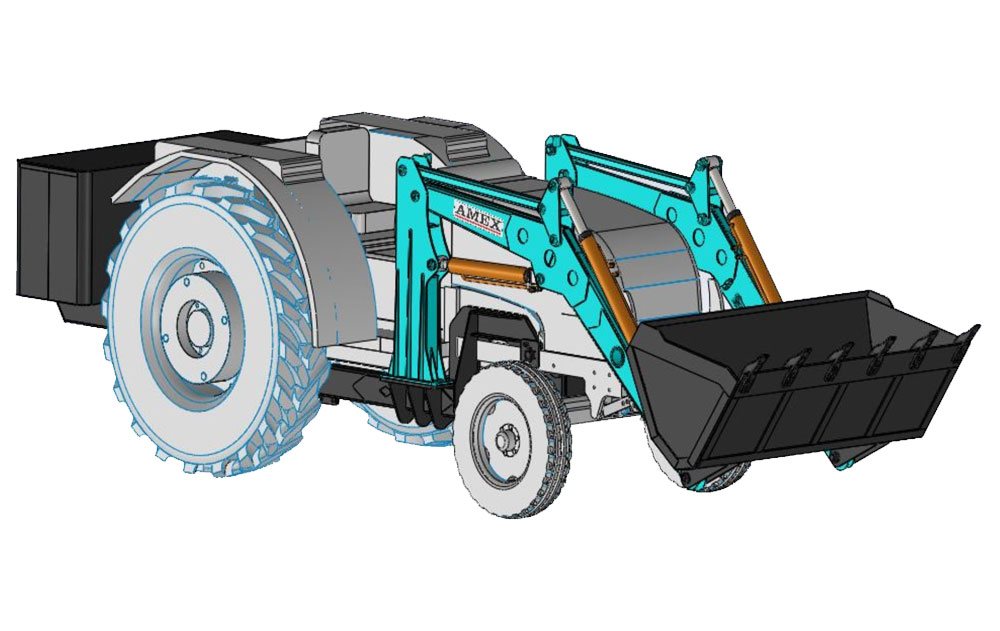

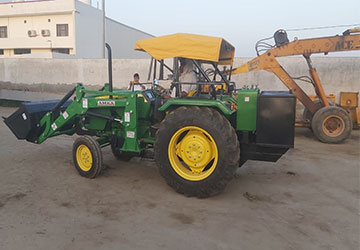

Detachable Loader

Loader can be detached and tractor can be used for any other aplication like Ploughing & Rotavators. Inbuilt parking stand provided


img-about

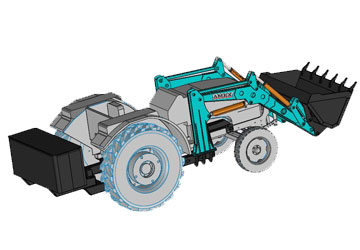

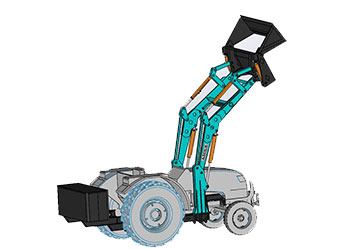

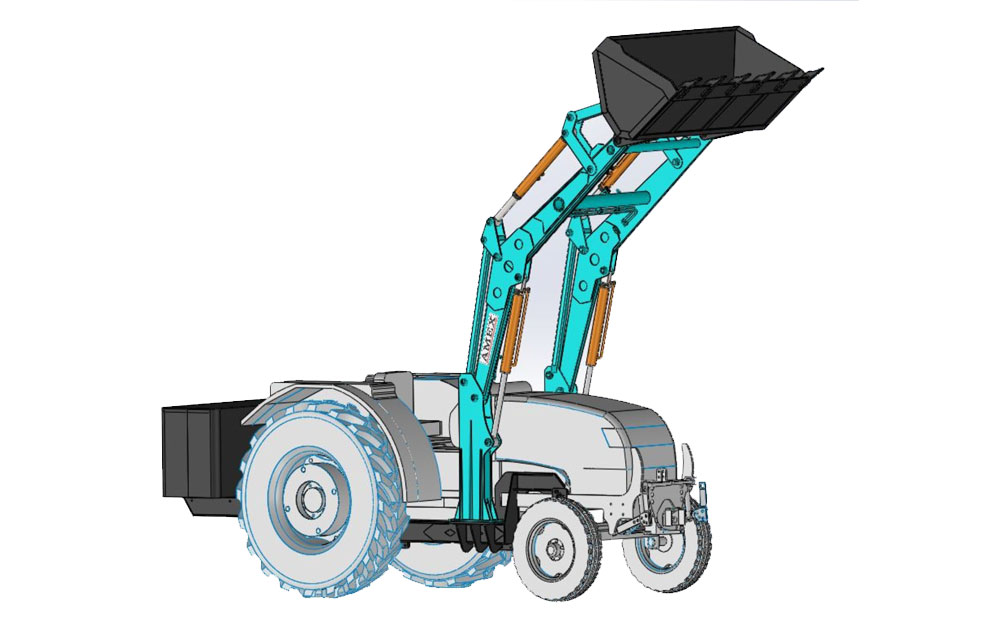

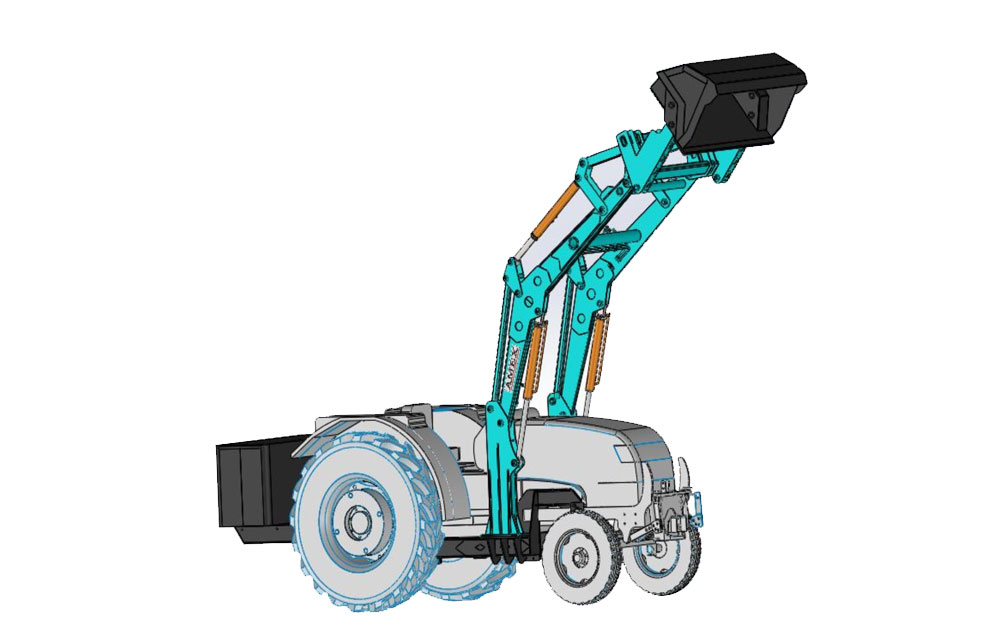

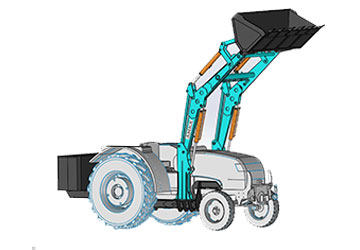

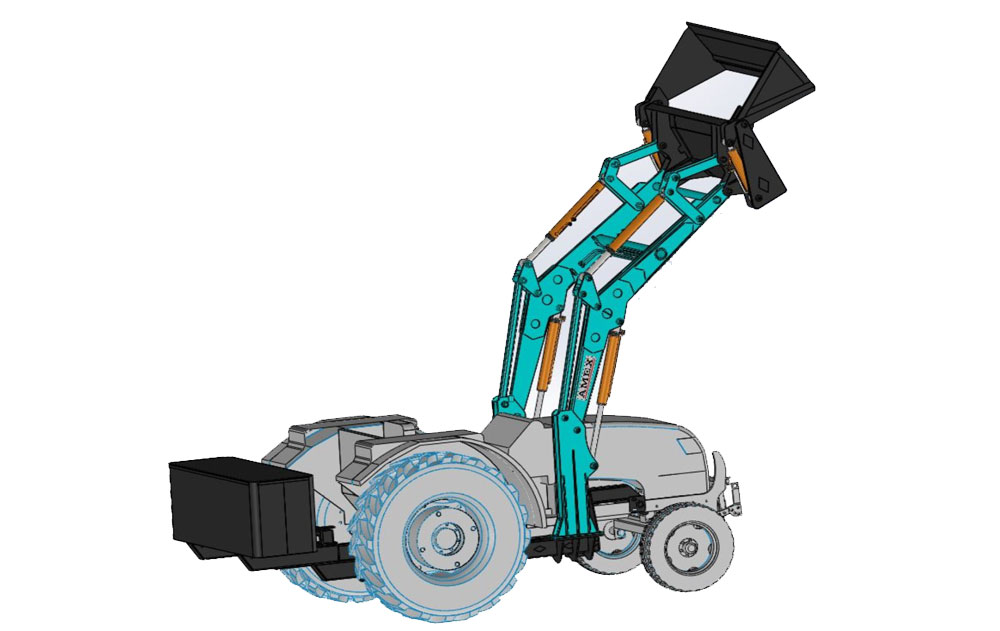

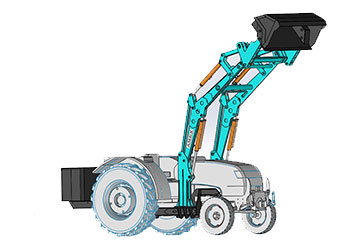

Parallel Linkage Mechanism - PLM

Parallel linkage mechanism - Maintain the same bucket angle accuratelty from bottom to top while operating. i.e. if the bucket level is horizontal in the ground it will be maintained same upto the top without operating the bucket cylinder


img-about

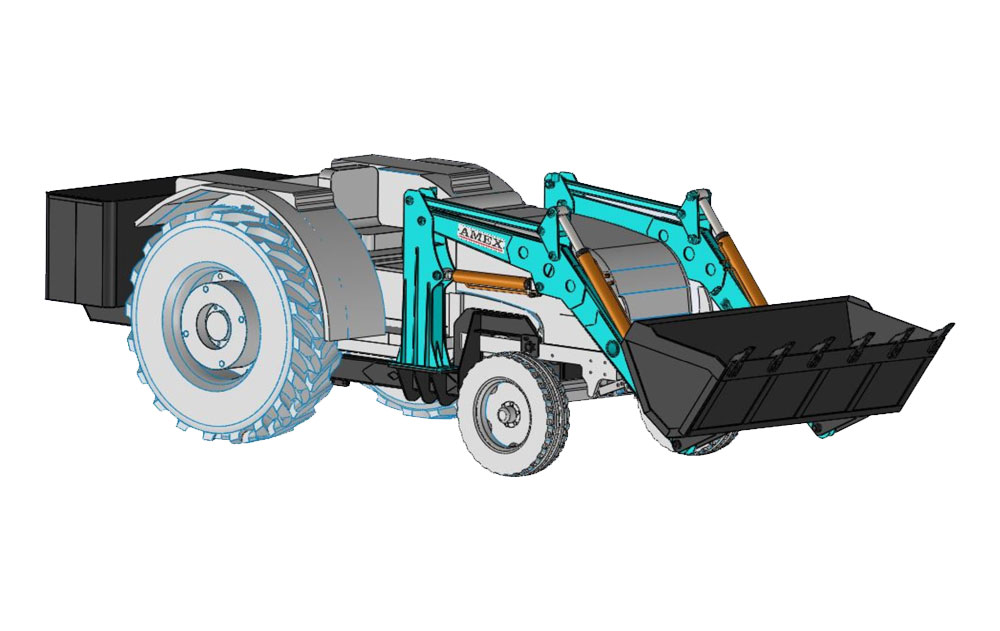

6in 1 Bucket Applications

Amex comes along with 6 in 1 bucket as default in which possible to do 6 types of works. Very much efficient while loading a small beemps and Hill.

Dozing

Grabbing

Grading

Spreading

Loading

Digging


img-about

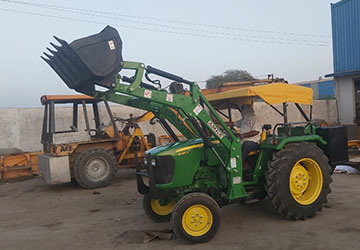

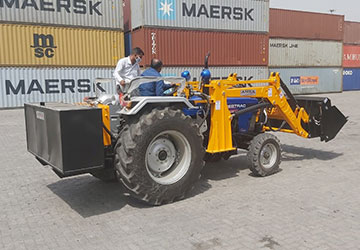

Low cost loader on low hp tractors

Possible to mount on tractor range from 40-50 hp tractors at very affordable and econimical price.

Performance Specifications:- A-11, A-8, A-6

Symbol Description A-11 Dimention (MM/ft,in") A-8 Dimention (MM/ft,in") A-6 Dimention (MM/ft,in")
A loader Height (Max Dump) 3720/12,3" 3050/10" 3050/10"
B Load arm Pin Height 3720/12,3" 3050/10" 3050/10"
C Dump Height 3050/10" 2170/7" 2170/7"
D Reach at ground (depend upon tractor) 1280/4,11" 1280/4,11" 1250/4,10"
E Reach at full dump (depend upon tractor) 759/2,6" 759/2,6" 680/2,3"
F Dig Dept 102/4" 51/2" 51/2"
G Roll Back At Ground 53° 53° 53°
H Dump Angle 45° 45° 45°
I Bucket Rated Capacity (Inside length 1950/1750/1450mm) 0.56 to 0.65 cu.m 0.65 cu.m 0.45 cu.m
J Safe Working Load 1100kg 800kg 600kg
K hydraulics Independent Tractor Pump Tractor pump
