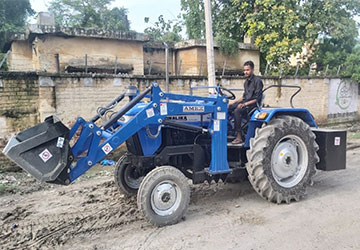

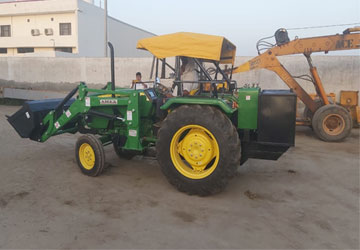

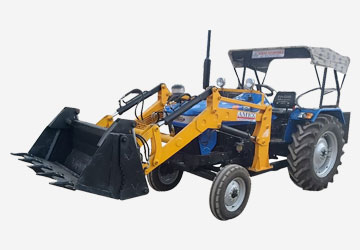

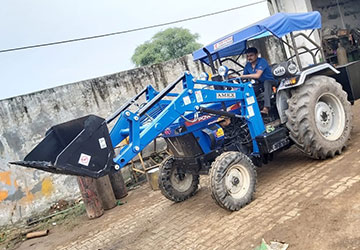

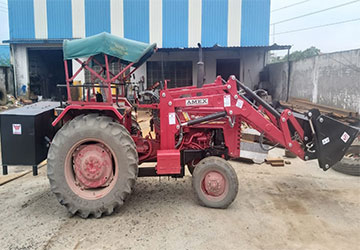

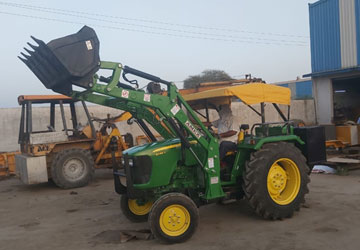

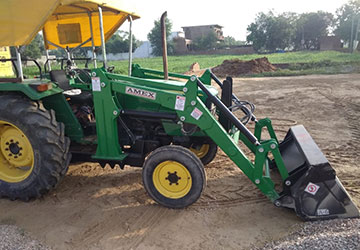

Possible to mount on tractor range from 30-50 hp tractors at very affordable and economical price
Possible to mount on tractor range from 30-50 hp tractors at very affordable and economical price

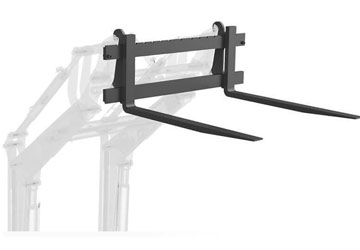

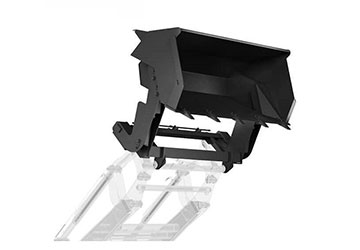

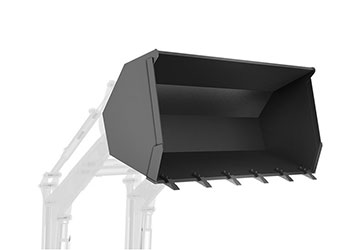

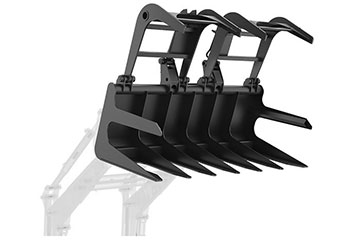

6 types of bucket availabolity can be interchanged within minutes by using Bucket adaptable system
Loader can be detached and tractor can be used for any other aplication like Ploughing & Rotavators. Inbuilt parking stand provided

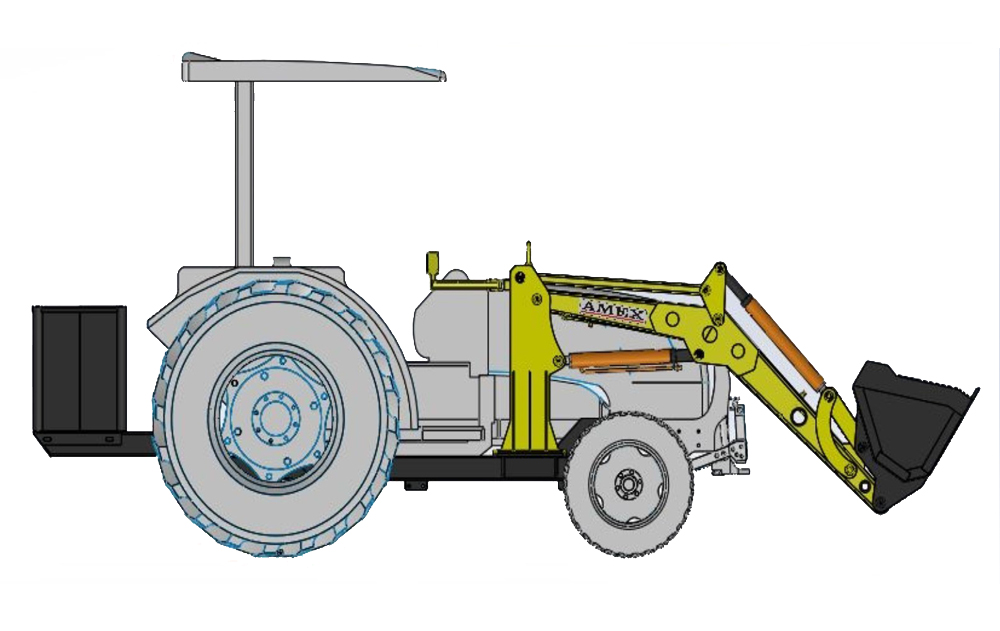

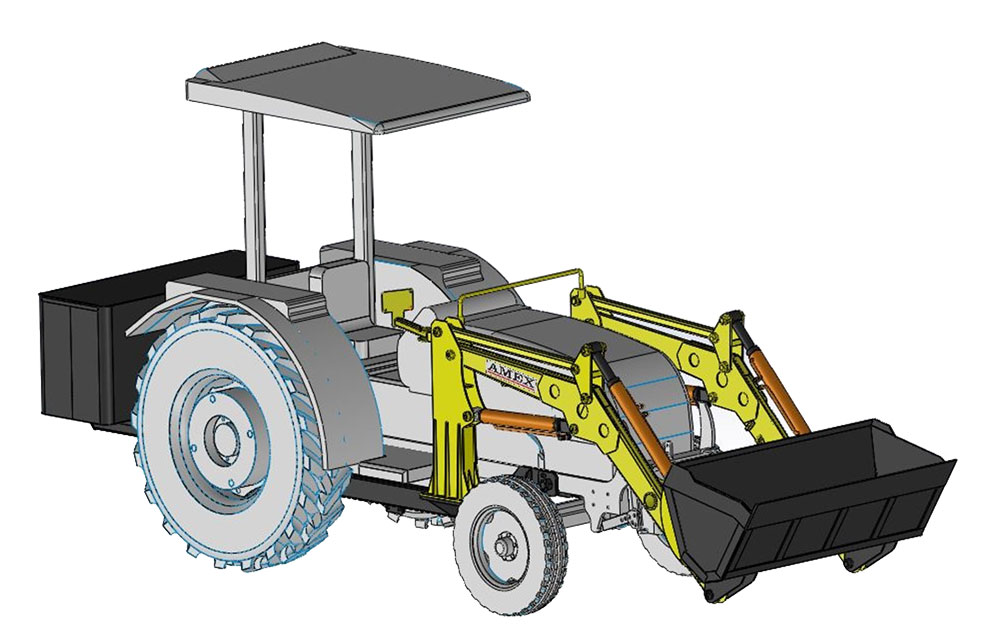

Parallel linkage mechanism - Maintain the same bucket angle accuratelty from bottom to top while operating.i.e. if the bucket level is horizontal in the ground it will be maintained same upto the top without operating the bucket cylinder

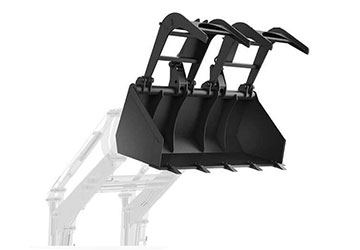

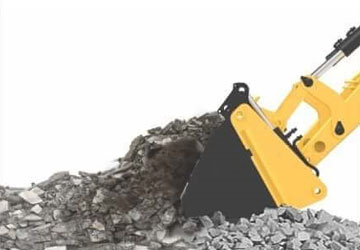

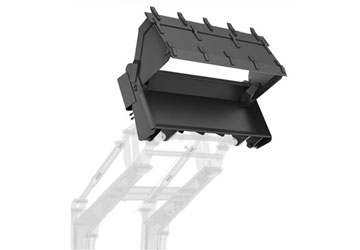

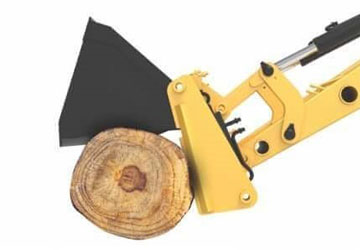

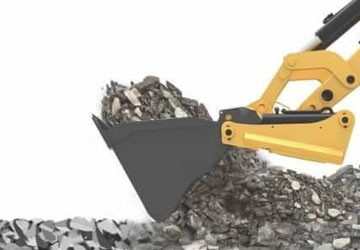

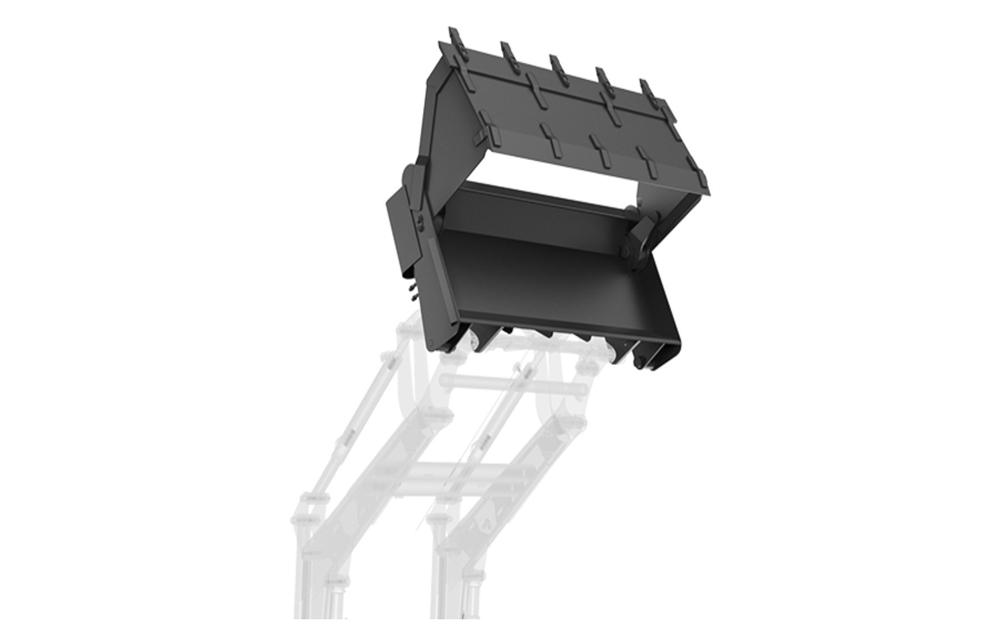

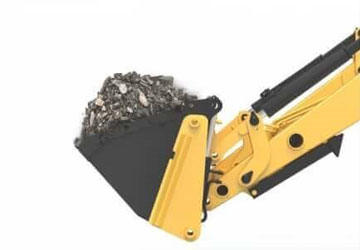

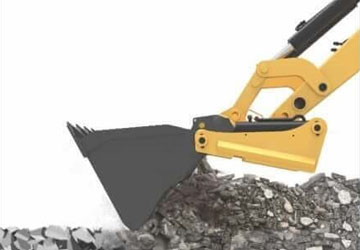

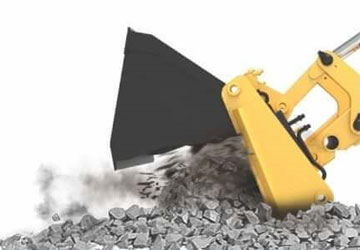

Amex comes along with 6 in 1 bucket as default in which possible to do 6 types of works. Very much efficient while loading a small beemps and hill.
Symbol | Description | A-11 Dimention (MM/ft,in") | A-8 Dimention (MM/ft,in") | A-6 Dimention (MM/ft,in") |
---|---|---|---|---|
A | loader Height (Max Dump) | 3720/12,3" | 3050/10" | 3050/10" |
B | Load arm Pin Height | 3720/12,3" | 3050/10" | 3050/10" |
C | Dump Height | 3050/10" | 2170/7" | 2170/7" |
D | Reach at ground (depend upon tractor) | 1280/4,11" | 1280/4,11" | 1250/4,10" |
E | Reach at full dump (depend upon tractor) | 759/2,6" | 759/2,6" | 680/2,3" |
F | Dig Dept | 102/4" | 51/2" | 51/2" |
G | Roll Back At Ground | 53° | 53° | 53° |
H | Dump Angle | 45° | 45° | 45° |
I | Bucket Rated Capacity (Inside length 1950/1750/1450mm) | 0.56 to 0.65 cu.m | 0.65 cu.m | 0.45 cu.m |
J | Safe Working Load | 1100kg | 800kg | 600kg |
K | hydraulics | Independent | Tractor Pump | Tractor pump |
